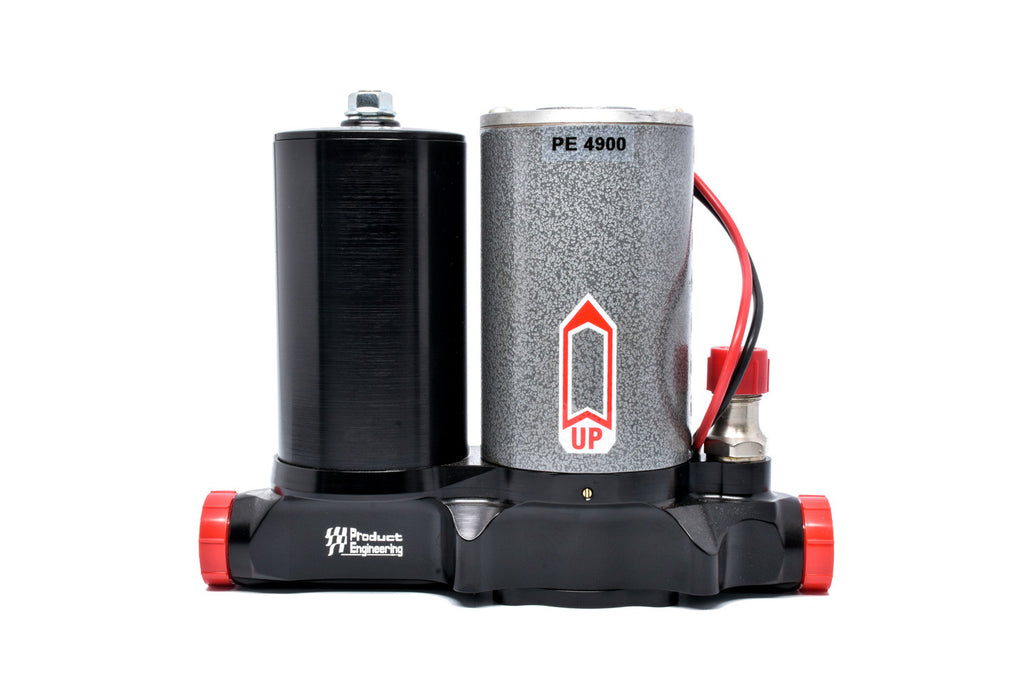

PE 4900 Magnum Jr. Racing Fuel Pump

  • Sale
  • Regular price $667.00

  • For Blow-Thru Systems up to 22 PSI max boost or 1500 HP
  • Adjustable up to 65 PSI
  • External -8 AN bypass valve (adjustable)
  • Cleanable filter
  • Alcohol compatible
  • Works with 12 or 16 volts
  • 7 vane impeller
  • -12 AN boss O-ring inlet & outlet ports
  • Continuous duty
  • 2 Year Parts & Labor Warranty

This is the only pump designed exclusively for carbureted blow-thru engines. The maximum output pump for carbureted blow-thru applications up to 22 PSI max or 1500 horsepower. It can handle single or twin carbs! Although referred to as a 'racing fuel pump' this pump as well as all of our others, is perfectly at home on high-performance street cars. The custom built, heavy duty 3 " diameter motor is made specifically for continuous duty. The body is CNC machined from 6061-T6 billet aluminum and hard anodized for exceptional wear characteristics. The 7 vane impeller promotes excellent priming and smooth flow. Its cleanable filter element is a synthetic mesh screen which free flows 4000 GPH.

We recommend using Dual 16 Volt Batteries

Must use Dual Electric Relay Harness

Click here for mounting kits, fittings & pump wiring harness.
